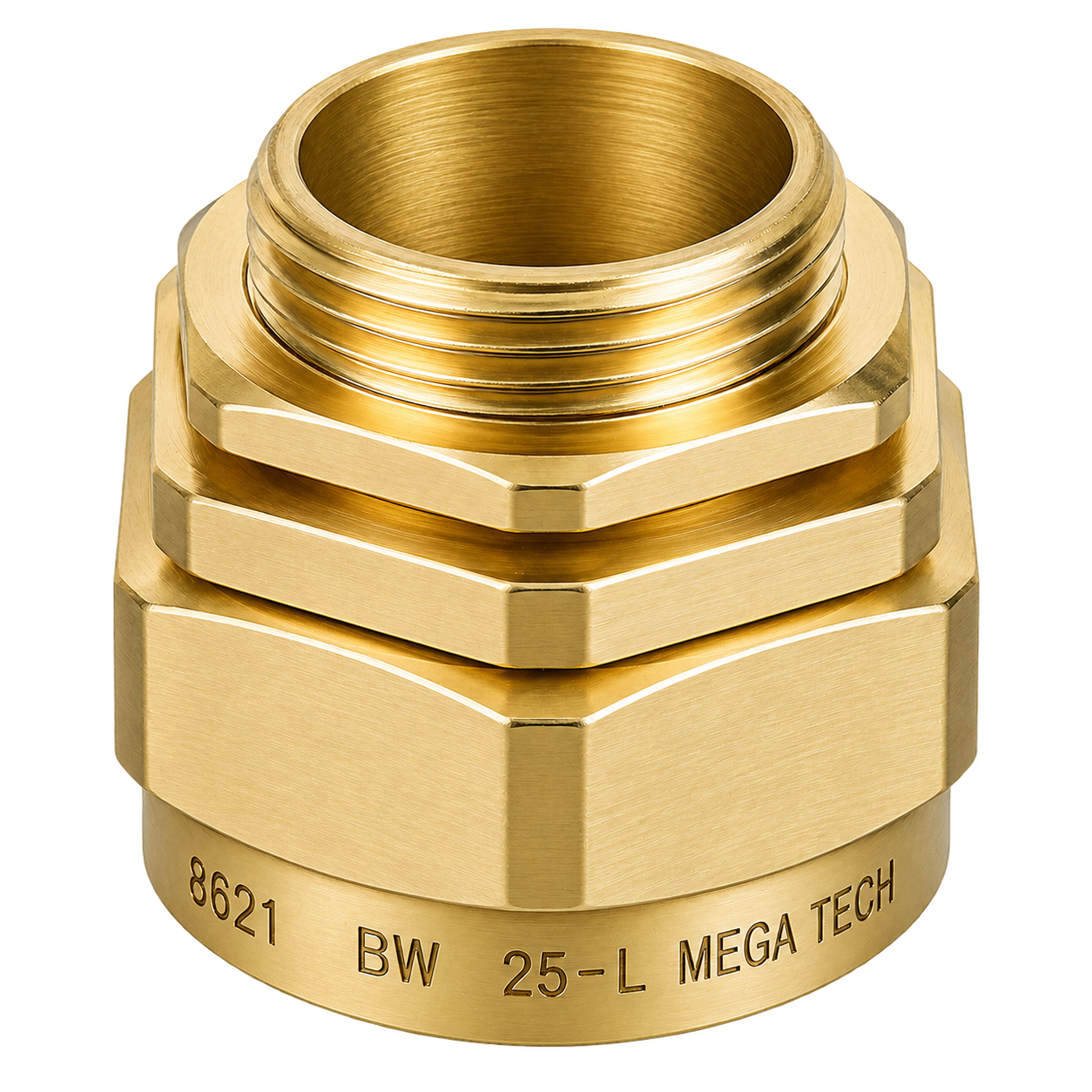

BW Indoor Armoured Cable Gland

Armour termination for indoor, dry applications where an external cable sealing ring is not required.

Armour termination

Brass / stainless steel. Confirm material, finish and final specification with your enquiry.

FUNCTION & APPLICATION

What makes BW different?

The BW design grips the cable armour at the equipment entry. Its role is armour termination; it should not be selected as an outer-sheath sealing gland.

How to choose

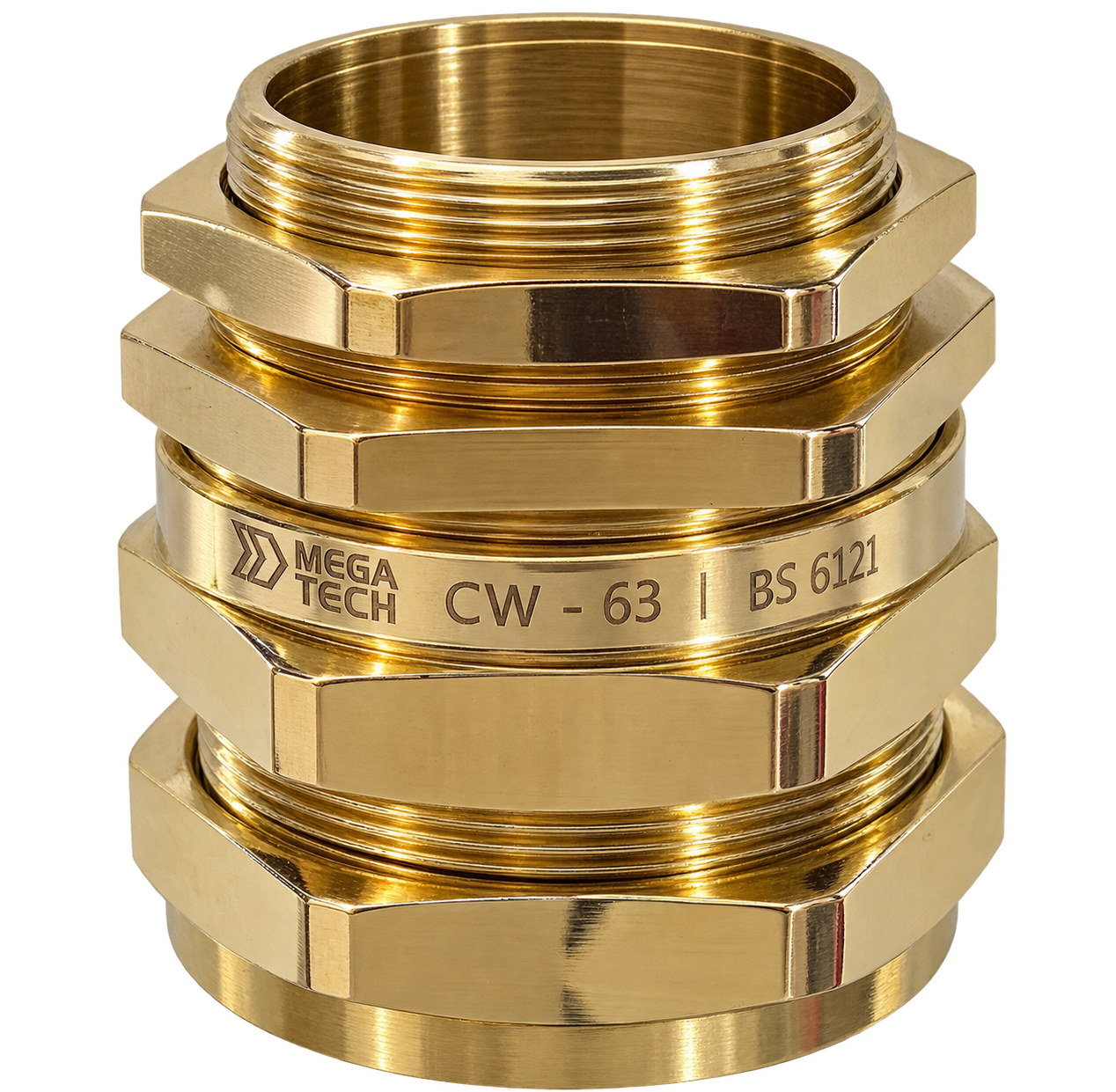

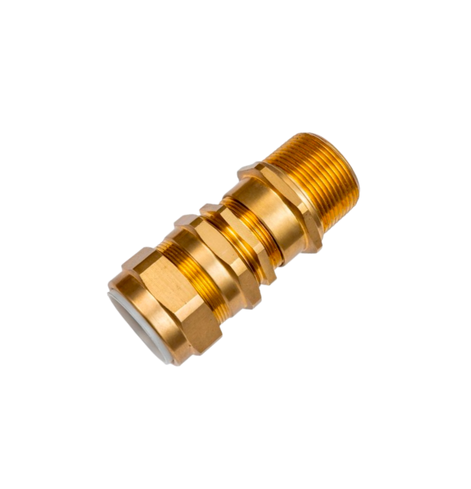

Confirm the under-armour diameter, overall diameter, armour-wire size and entry thread. If the installation needs outer-sheath sealing, review CW; if it needs both inner and outer sealing, review E1W.

Before you order

Send the cable data sheet, entry thread, material, finish and quantities. Ask for current product-specific performance and installation documents.

Product family names do not establish an IP rating, hazardous-area approval or certification. Confirm any required rating for the supplied design.

COMPLETE CATALOGUE TABLE

Every listed size. Every dimension.

15 catalogue rows · Source page 5 · Dimensions in mm unless stated otherwise.

Scroll the table horizontally to see every column. † marks a source entry requiring confirmation.

Size	Under armour A max	Overall B max	Armour wire C	Entry D Ø	Thread E length	Shoulder F	Flats G	Corners H	Catalogue code
16	8.6	13.5	0.9	16	10	23	20	23	MEG-BW 16
20S	12.3	17	0.90/1.25	20	10	23	23	24	MEG-BW 20S
20	14.3	20	0.90/1.25	20	10	30	25	27	MEG-BW 20
25S	18	23.8	1.25/1.60	25	10	30	31	32.5	MEG-BW 25S
25	20.4	27	1.25/1.60	25	10	32	30	38.5	MEG-BW 25
32	26.5	33	1.60/2.00	32	10	36	41.5	45.5	MEG-BW 32
40S	31	37	1.60/2.00	40	10	36	45	50	MEG-BW 40S
40	32.5	43	1.60/2.00	40	15	40	49	54	MEG-BW 40
50S	37.8	48	2.00/2.50	50	15	40	58	65	MEG-BW 50S
50	44	53	2.00/2.50	50	15	45	62.3	69.5	MEG-BW 50
63S	50.5	60.5	2.5	63	15	45	70	77	MEG-BW 63S
63	56.5	65.5	2.5	63	15	50	76.3	85	MEG-BW 63
75S	62.5	72	2.5	75	15	50	85	95	MEG-BW 75S
75	67.5	78.5	2.50/3.15	75	15	75	90.5	99	MEG-BW 75
90	80	93	3.15	90	20	75	112	125	MEG-BW 90

Slash-separated wire values are reproduced as printed. Confirm the required clamping option.
